SPC 04-M5L | 4mm O.D. Tube, M5 x 0.8 Thread Male Connector | 316L Stainless Steel Push to Connect Fitting

4mm O.D. tube, M5 x 0.8 thread male connector 316L stainless steel push to connect fitting is made of 316L stainless steel body, 316L stainless steel collet and FKM (Viton) seal. External tightening with a flat wrench or socket wrench when install the fittings. Widely used to connect pneumatic plastic tubings such as PU tubings, PA tubings, PE tubings, teflon tubings and so on. 316L stainless steel pneumatic fitting is more pressure resistant and corrosion resistant than plastic pneumatic fitting.

Push-in Tubing O.D: 4mm
Thread Size: M5 x 0.8
Fluid Admitted: Air, Vacuum, Water (no freezing), Steam ...
Body Material: 316L Stainless Steel
Thread Material: 316L Stainless Steel
Thread Sealing: O-ring
Seal, O-ring:FKM (Viton)
Working Pressure: 0∼2.0MPa | 0∼290psi
Proof Pressure: 3.0Mpa | 435psi
Negative Pressure: -100Kpa | -29.5 In Hg
Working Temperature: -20∼150°C | -4∼302°F
Lock Claw: Stainless Steel(SUS)
Applicable Tube: PU / PA / PE / Teflon Tubing ...

Price: €3.58

Ask for Quotation

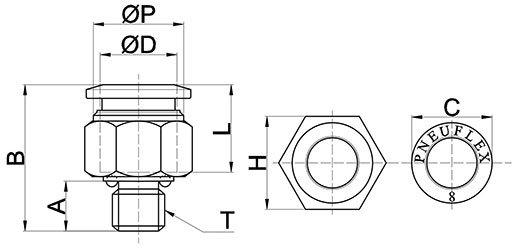

Drawing and Dimensions of 4mm - M5 Male Connector | 316L Stainless Steel Push to Connect Fitting

Part No.	ΦD	T	ΦP	A	B	L	H	C
SPC 04-M5L	4	M5	9.8	4	19.5	14	10	9.5
